10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks

10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks

10kW Oil Pump Motor

IP67 PMSM Motor Module

1500rpm Electric Drive Module

Contact Us
Request A Quote
10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks 10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks 10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks
Product Details
Highlight:

10kW Oil Pump Motor

,

IP67 PMSM Motor Module

,

1500rpm Electric Drive Module

Payment & Shipping Terms
RELATED PRODUCTS
Good price 30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications online

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications

Get Best Price
Good price 12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems online

12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems

Get Best Price
Good price 25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive online

25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive

Get Best Price
Good price 7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty online

7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty

Get Best Price
Contact Us
+8619973113995
jem@hncsjem.cn
Contact Now
Product Description
10kW Oil Pump Motor for Sweepers & Garbage Trucks | IP67 PMSM
Product Specifications
Motor Model YW326-W10-1500B
Motor Type 3-Phase Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration Star Connection
Cooling Method Natural Air Cooling
Rated Voltage 230VAC
Battery Voltage 326VDC
Rated Speed 1500rpm
Ingress Protection IP67
Rated Torque 63.6N.m
Number of Poles 4
Rated Power 10KW
Duty Cycle S1 (Continuous)
Insulation Class Class H

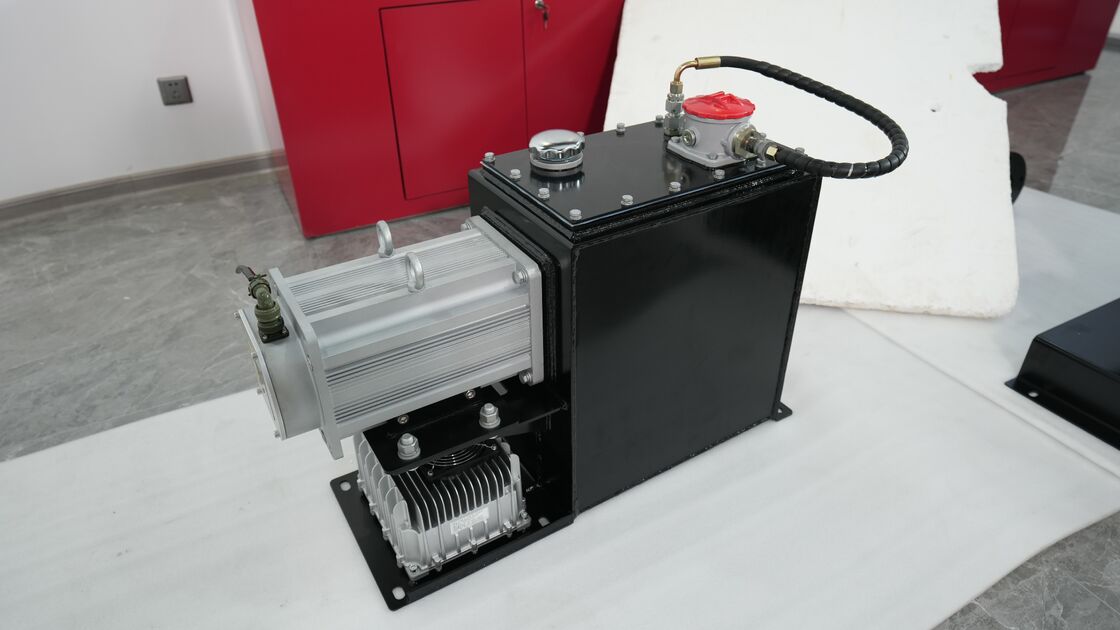

10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks 0

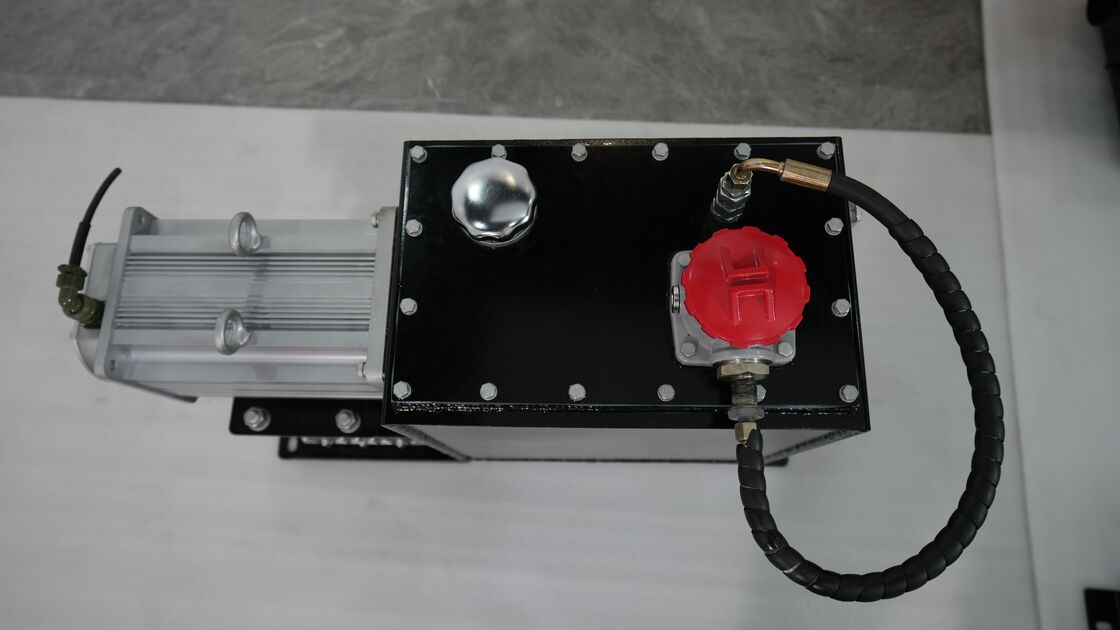

The Oil Pump Motor Module is a compact, high-efficiency permanent magnet synchronous motor (PMSM) designed specifically for hydraulic pump applications in sanitation vehicles and industrial equipment. With 10kW rated power and 63.6 N·m torque at 1500rpm, this module delivers reliable hydraulic power for systems such as garbage truck compactors, sweeper brush lifts, and other hydraulically actuated mechanisms.
Engineered for continuous duty (S1 operation), the motor features IP67 ingress protection—complete dust-tight and waterproof sealing for harsh outdoor environments where exposure to moisture, dust, and debris is unavoidable. The natural air cooling system simplifies installation and eliminates the need for external cooling circuits, while Class H insulation ensures long-term reliability even under high-temperature conditions.

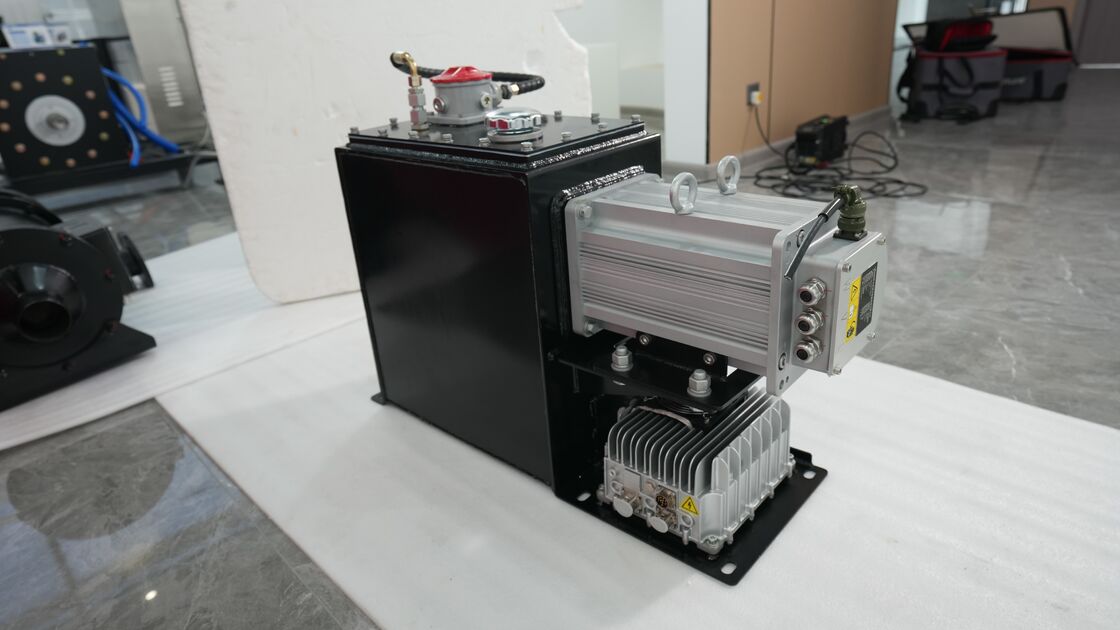

10kW Oil Pump Motor with IP67 Protection and 1500rpm Speed for Sweepers & Garbage Trucks 1

Key Features
  • 10kW PMSM Technology - High efficiency, precise speed control, low maintenance
  • Natural Air Cooling - Simple, reliable thermal management without external plumbing
  • IP67 Protection - Dust-tight and waterproof for all-weather operation
  • 326V DC Compatibility - Ideal for electric and hybrid vehicle platforms
  • S1 Continuous Duty - Designed for extended operating hours without interruption
  • Class H Insulation - Withstands high temperatures for enhanced durability
  • Compact Design - Easy integration into vehicle hydraulic systems
This motor module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle or system requirements.
