Product Description

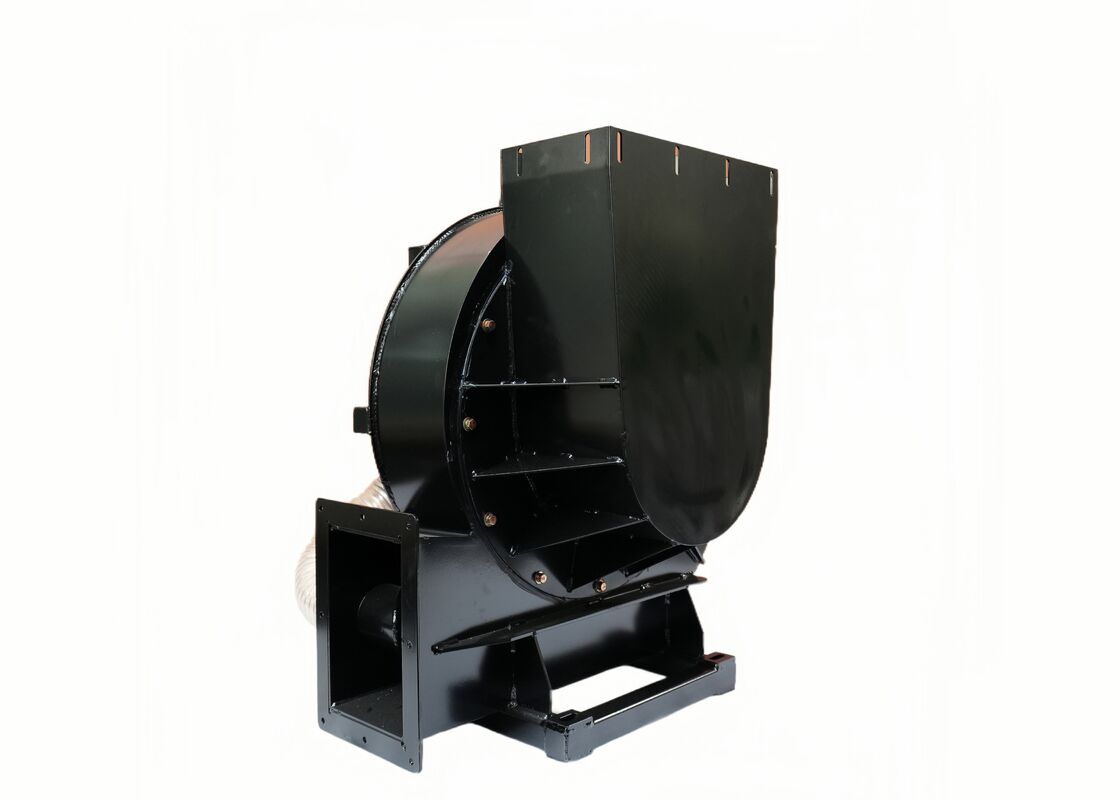

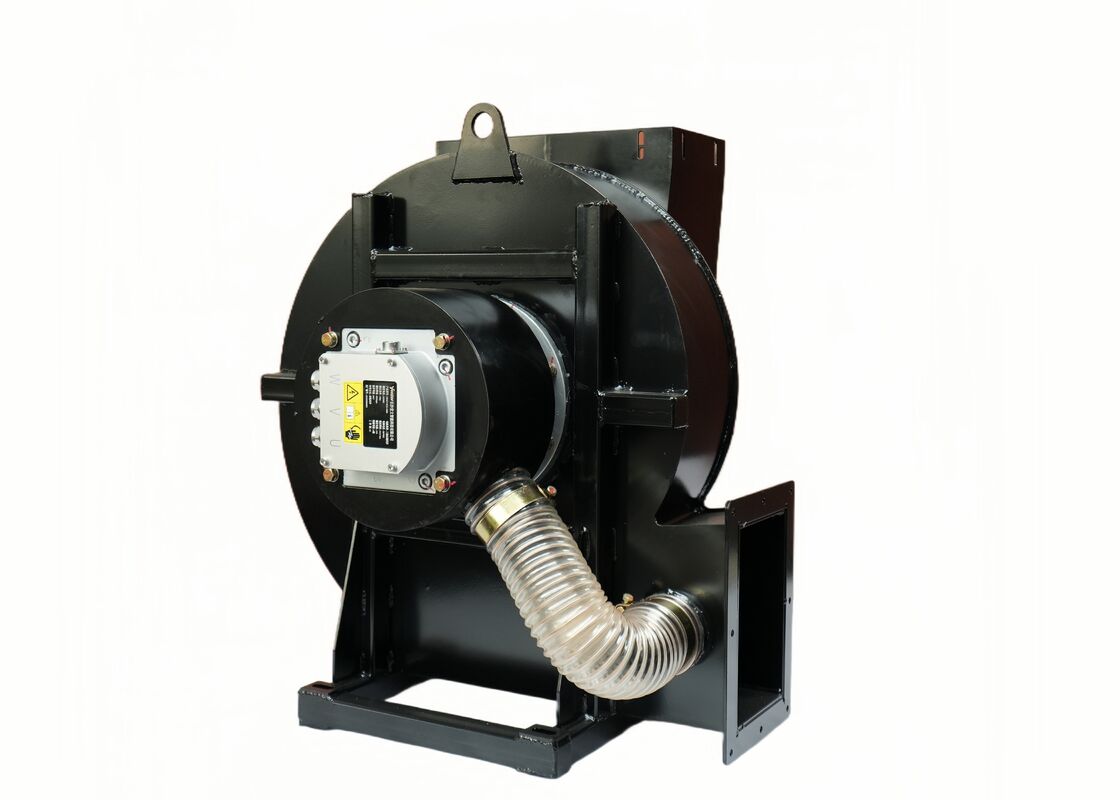

High-Speed Water-Cooled Motor Module | 25kW PMSM, IP67, Continuous Duty

The High-Speed Water Pump / Fan Motor Module is a high-performance permanent magnet synchronous motor (PMSM) designed for demanding applications such as high-pressure water pumps and fan systems on sanitation vehicles. With 25kW rated power and 53 N·m torque at 4500rpm, it delivers robust, reliable performance for washdown, dust suppression, and airflow systems.

Motor Specifications

Motor Model	YW540-W25-4500	Motor Type	3-Phase Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration	Star Connection	Cooling Method	Water Cooling
Rated Voltage	380 VAC	Battery Voltage	540 VDC
Rated Speed	4500 rpm	Ingress Protection	IP67
Rated Torque	53 N·m	Number of Poles	4
Rated Power	25 kW	Duty Cycle	S1 (Continuous)
Rated Current	40 A	Insulation Class	Class H

Engineered for continuous duty (S1 operation), the motor features IP67 ingress protection — complete dust-tight and waterproof sealing for harsh outdoor environments. The water cooling system ensures optimal thermal management during extended operation, while Class H insulation guarantees long-term reliability even under high-temperature conditions.

Key Features

25kW PMSM Technology – High efficiency, precise speed control, low maintenance
Water Cooling – Superior thermal management for continuous operation
IP67 Protection – Dust-tight and waterproof for all-weather reliability
540V DC Compatibility – Ideal for electric and hybrid vehicle platforms
S1 Continuous Duty – Designed for extended operating hours without interruption
Class H Insulation – Withstands high temperatures for enhanced durability
High-Speed Capability – 4500rpm rated speed for demanding pump and fan applications

This motor module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle or system requirements.
