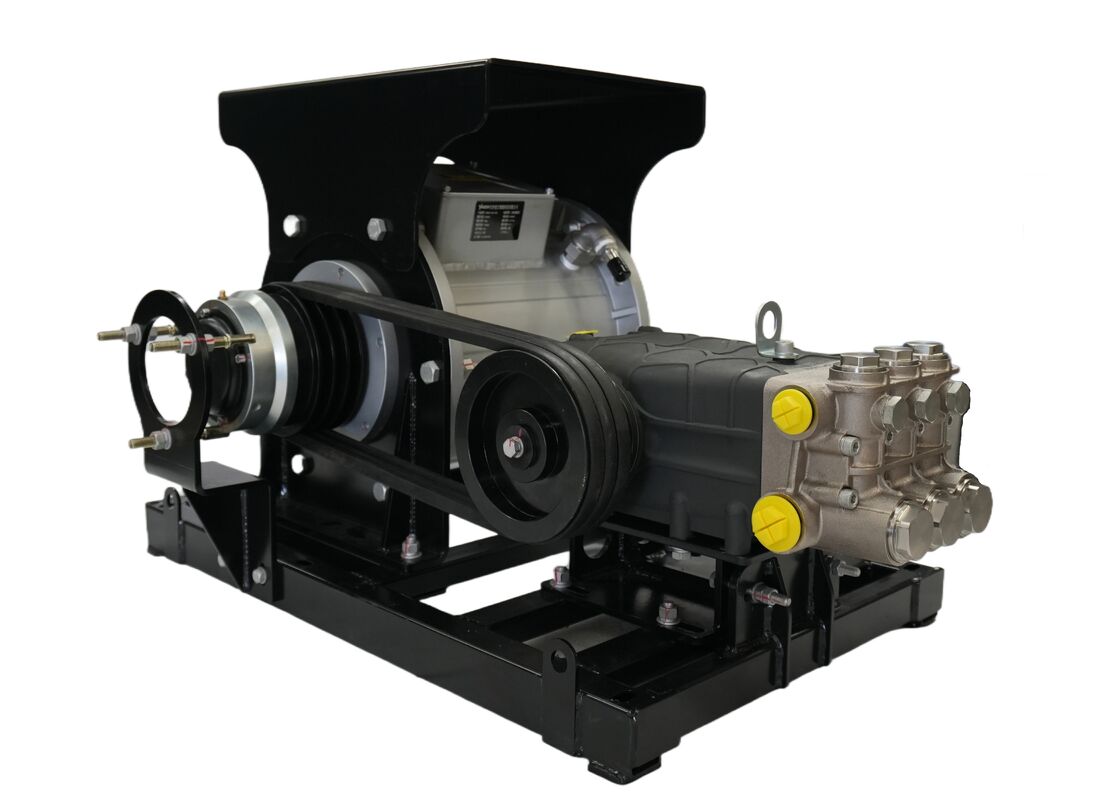

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications

Place of Origin:

changsha.hunan

Model Number:

YW540-Y30-1450

Contact Us
Request A Quote
30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications
Product Details
Motor Type:
3-Phase Permanent Magnet Synchronous Motor (PMSM)
Cooling Method:
Water Cooling
Winding Configuration:
Star Connection
Rated Voltage:
380 VAC
Battery Voltage:
540 VDC
Rated Speed:
1450 Rpm
Ingress Protection:
IP67
Rated Torque:
197 N·m
Number Of Poles:
4
Rated Power:
30 KW
Duty Cycle:
S1 (Continuous)
Rated Current:
51 A
Insulation Class:
Class H
Payment & Shipping Terms
RELATED PRODUCTS
Good price 30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications online

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications

Get Best Price
Good price 12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems online

12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems

Get Best Price
Good price 25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive online

25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive

Get Best Price
Good price 7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty online

7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty

Get Best Price
Contact Us
+8619973113995
jem@hncsjem.cn
Contact Now
Product Description

The High-Torque Motor Module is a powerful permanent magnet synchronous motor (PMSM) engineered for demanding applications requiring high starting torque and continuous heavy‑duty operation. With 30kW rated power and 197 N·m torque at 1450rpm, it is ideally suited for driving hydraulic pumps, compressors, and other auxiliary systems on sanitation vehicles, construction equipment, and industrial machinery.

Designed for continuous duty (S1 operation), the motor features water cooling for superior thermal management during extended use. The IP67 ingress protection ensures complete dust‑tight and waterproof sealing, making it reliable in harsh outdoor environments. Class H insulation guarantees long‑term durability even under high‑temperature conditions.

Key Features:
  • 30kW PMSM Technology – High efficiency, precise torque control, low maintenance
  • High Torque Output – 197 N·m at 1450rpm for demanding hydraulic applications
  • Water Cooling – Excellent thermal management for continuous duty
  • IP67 Protection – Dust‑tight and waterproof for all‑weather operation
  • 540V DC Compatibility – Optimized for electric and hybrid vehicle platforms
  • S1 Continuous Duty – Designed for extended operating hours without interruption
  • Class H Insulation – High‑temperature resistance for long‑term reliability

This motor module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific system requirements.

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications 0

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications 1
