40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers

40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers

40kW Electric Drive Module

Water-Cooled Dual-Pump Water Pump Module

IP67 PMSM Motor Module

Contact Us
Request A Quote
40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers 40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers 40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers
Product Details
Highlight:

40kW Electric Drive Module

,

Water-Cooled Dual-Pump Water Pump Module

,

IP67 PMSM Motor Module

Payment & Shipping Terms
RELATED PRODUCTS
Good price 30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications online

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications

Get Best Price
Good price 12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems online

12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems

Get Best Price
Good price 25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive online

25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive

Get Best Price
Good price 7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty online

7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty

Get Best Price
Contact Us
+8619973113995
jem@hncsjem.cn
Contact Now
Product Description

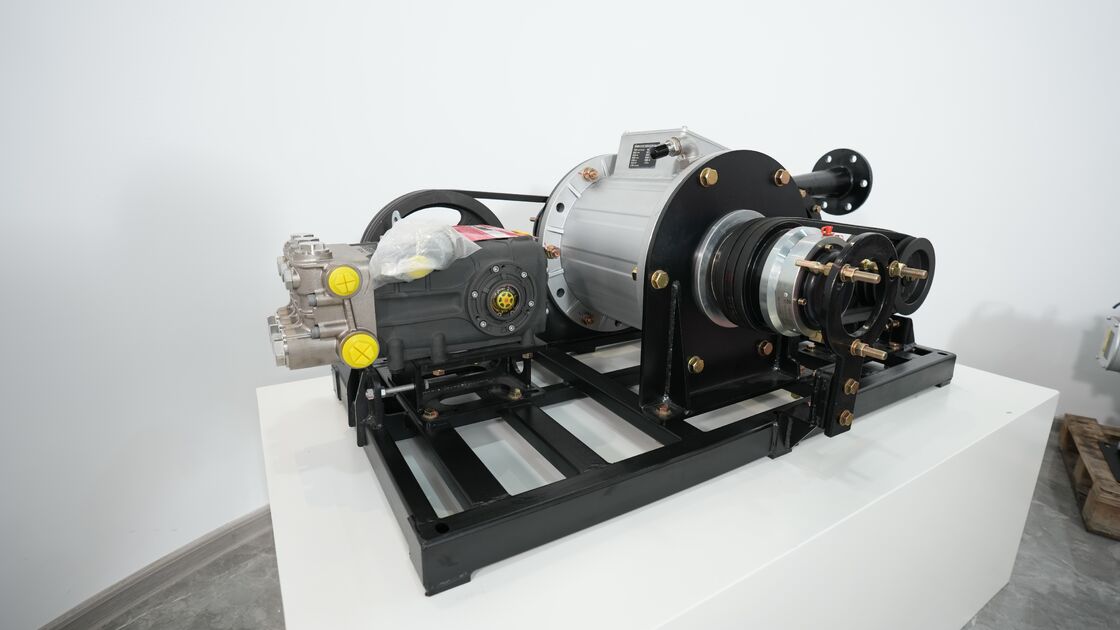

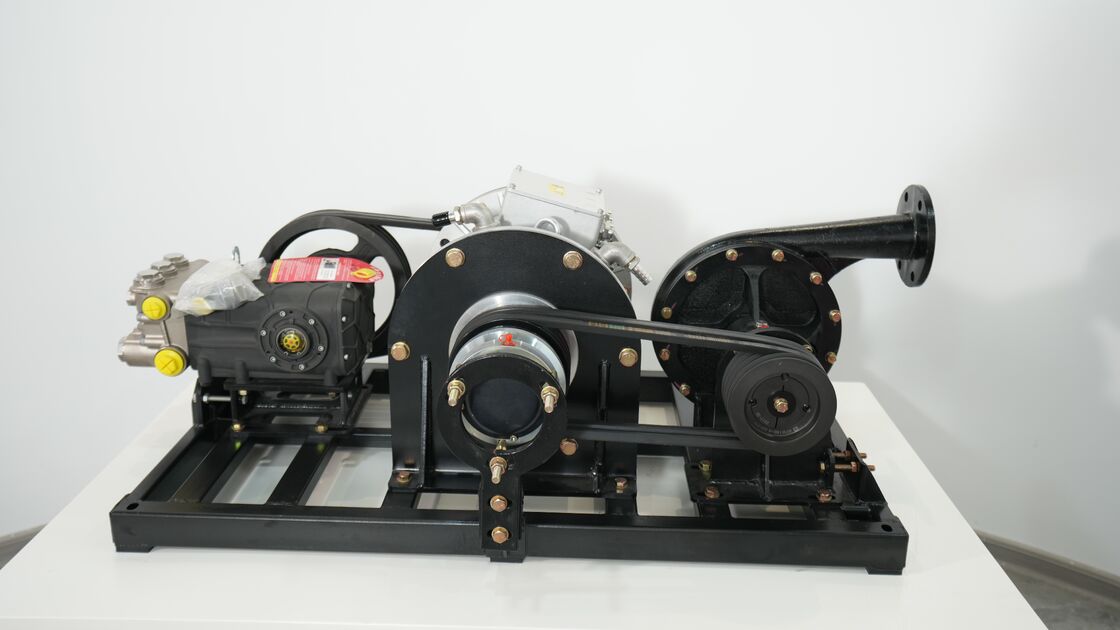

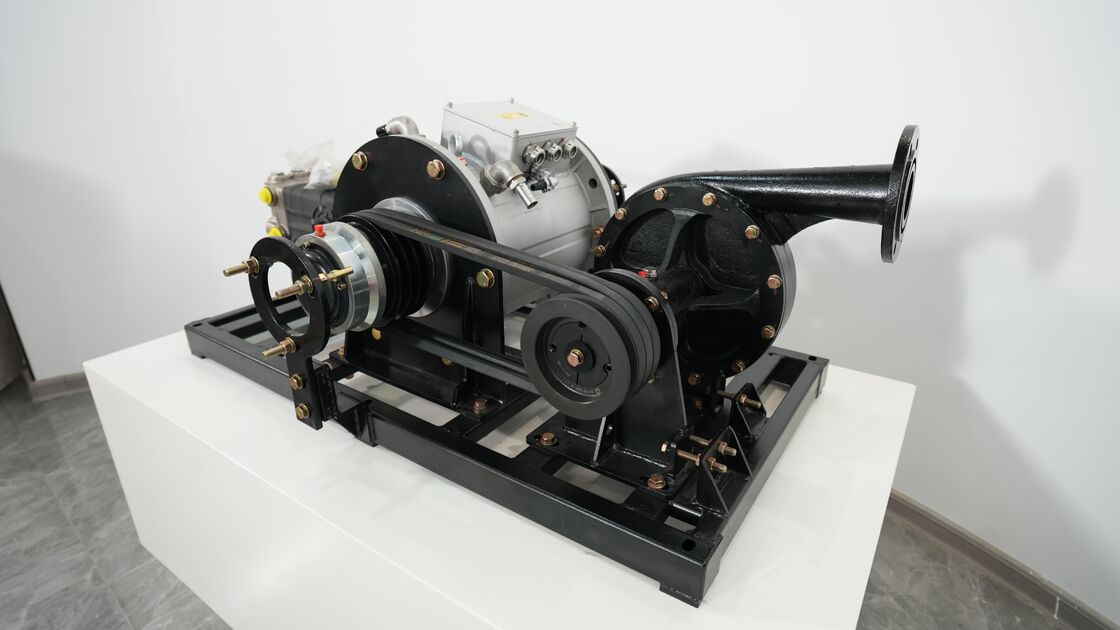

40kW Dual-Pump High/Low Pressure Module
Water-Cooled PMSM, IP67 Protection for Sweepers & Flushers
40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers 0 40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers 1
Product Overview
The Dual-Pump High & Low Pressure Water Pump Module is a powerful, integrated pumping solution engineered for demanding sanitation vehicle applications. It combines a 40kW permanent magnet synchronous motor (PMSM) with dual-pump configuration to deliver both high-pressure and low-pressure water output from a single, compact module.
Designed for continuous duty (S1 operation), this module provides reliable water flow for multiple functions simultaneously—high-pressure washing, dust suppression, and low-pressure irrigation—making it ideal for advanced sweepers, street flushers, and multi-purpose sanitation trucks.
Technical Specifications
Motor Model YW540-Y40-2500A
Motor Type 3-Phase Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration Star Connection
Cooling Method Water Cooling
Rated Voltage 380 VAC
Battery Voltage 540 VDC
Rated Speed 2500 rpm
Ingress Protection IP67
Rated Torque 152 N·m
Number of Poles 4
Rated Power 40 kW
Duty Cycle S1 (Continuous)
Rated Current 70 A
Insulation Class Class H

40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers 2

Key Features & Benefits
  • 40kW PMSM Technology – High efficiency, precise speed control, low maintenance
  • Dual-Pump Configuration – Simultaneous high & low pressure output
  • Water Cooling System – Superior thermal management for continuous duty
  • IP67 Protection – Dust-tight and waterproof for all-weather operation
  • 540V DC Compatibility – Ideal for electric and hybrid vehicle platforms
  • S1 Continuous Duty – Designed for extended operating hours
  • Class H Insulation – Withstands high temperatures for enhanced durability
Typical Applications
  • High-pressure washing systems on sweepers and flushers
  • Dust suppression spray bars
  • Low-pressure irrigation and water transfer
  • Multi-function sanitation vehicles
Customization Available
This module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle requirements.
