Product Description

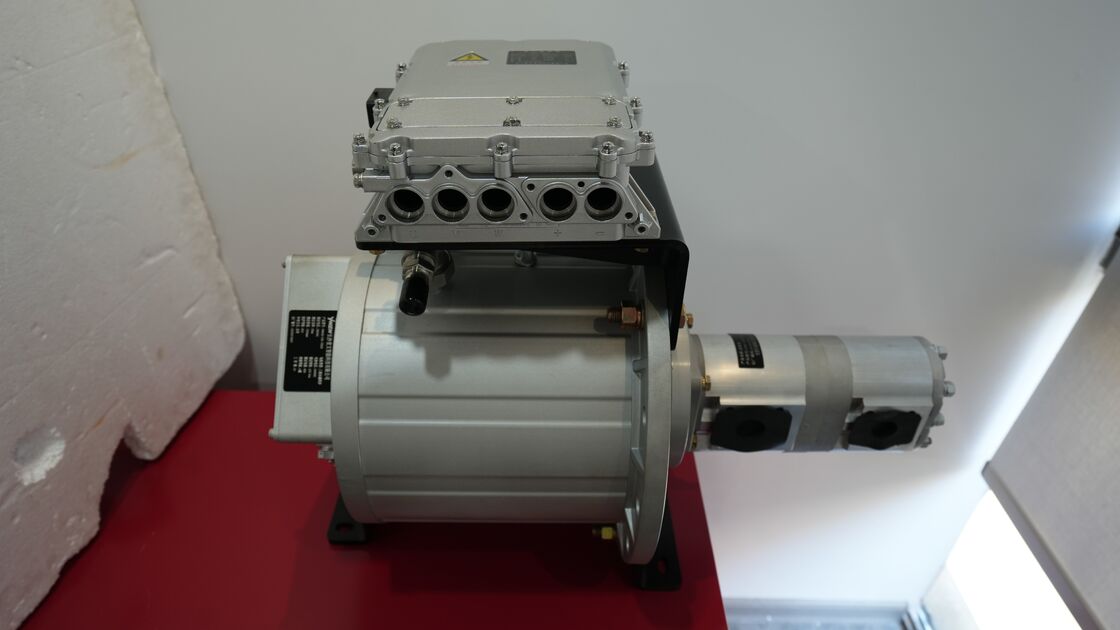

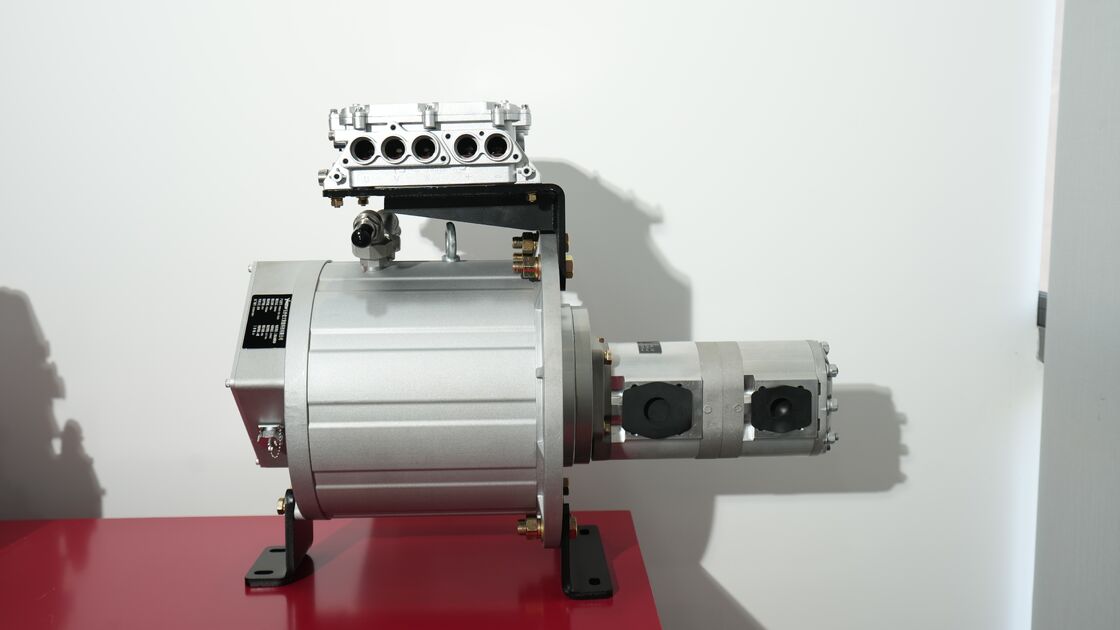

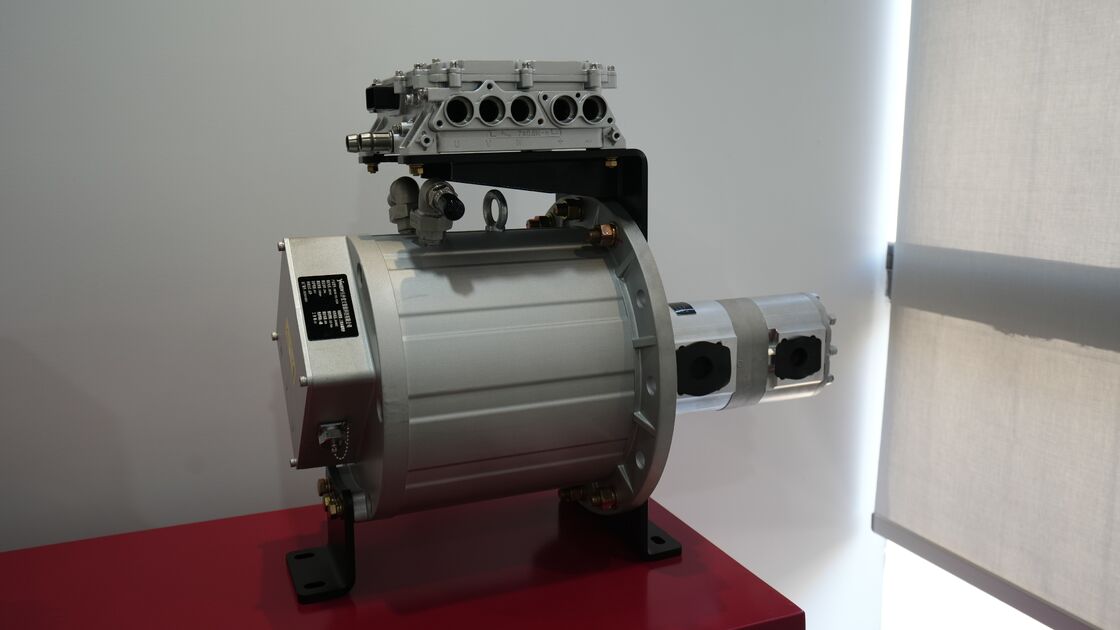

30kW Integrated Motor Module | Water-Cooled PMSM, IP67, for Sweepers & Municipal Vehicles

Motor Specifications

Motor Model	YW540-Y30-1500A
Motor Type	3-Phase Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration	Star Connection
Cooling Method	Water Cooling
Rated Voltage	380VAC
Battery Voltage	540VDC
Rated Speed	1500rpm
Ingress Protection	IP67
Rated Torque	191N.m
Number of Poles	4
Rated Power	30KW
Duty Cycle	S1 (Continuous)
Rated Current	48A
Insulation Class	Class H

The Integrated Motor Module is a high-performance, water-cooled permanent magnet synchronous motor (PMSM) designed for demanding sanitation vehicle and industrial applications. With 30kW rated power and 191 N·m torque at 1500rpm, this module delivers robust and reliable performance for driving fans, pumps, and other auxiliary systems on sweepers, garbage trucks, and municipal equipment.

Engineered for continuous duty (S1 operation), the motor features IP67 ingress protection—complete dust-tight and waterproof sealing for harsh outdoor environments where exposure to moisture, dust, and debris is unavoidable. The water cooling system ensures optimal thermal management during extended operation, while Class H insulation guarantees long-term reliability even under high-temperature conditions.

Key Features

30kW PMSM Technology - High efficiency, precise speed control, low maintenance
Water Cooling - Superior thermal management for continuous duty applications
IP67 Protection - Dust-tight and waterproof for all-weather operation
540V DC Compatibility - Ideal for electric and hybrid vehicle platforms
S1 Continuous Duty - Designed for extended operating hours without interruption
Class H Insulation - Withstands high temperatures for enhanced durability
Compact Integrated Design - Easy integration into vehicle systems

This motor module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle or system requirements.
