Product Description

30kW Integrated Water Pump Module for Sweepers

PMSM, Water-Cooled, IP67 Protection

Modular Integrated Electric Pump Specifications

Pump Type	Centrifugal Electric Pump	Flow Rate	50 m³/h
Head	110 m	Motor Type	Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration	Star Connection	Cooling Method	Water Cooling (via flow channel)
Rated Voltage	380 VAC	Battery Voltage	540 VDC
Rated Speed	3200 rpm	Motor Protection Class	IP67
Rated Power	30 kW	Duty Cycle	S1 (Continuous)
Rated Current	51 A	Insulation Class	Class H

The Modular Integrated Electric Pump is a high-performance, space-saving solution that combines a 30kW permanent magnet synchronous motor (PMSM) with a centrifugal pump in a single, compact unit. Designed for demanding sanitation vehicle applications, this integrated module eliminates the need for external couplings and alignment, reducing installation complexity and improving overall system reliability.

With a flow rate of 50 m³/h and a head of 110 meters, this pump delivers powerful performance for high-pressure washing, dust suppression, and water transfer tasks on sweepers, street flushers, and other municipal vehicles. The water cooling system ensures optimal thermal management during continuous operation, while the IP67-rated motor provides complete protection against dust and water ingress for all-weather reliability.

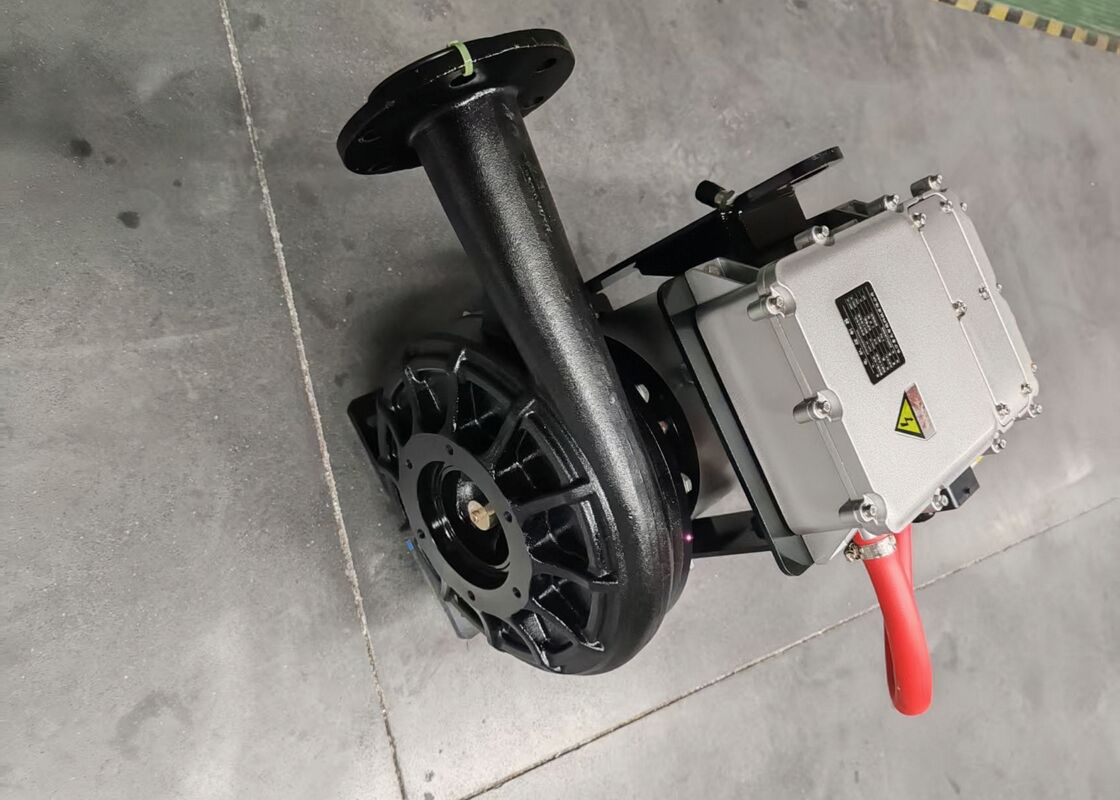

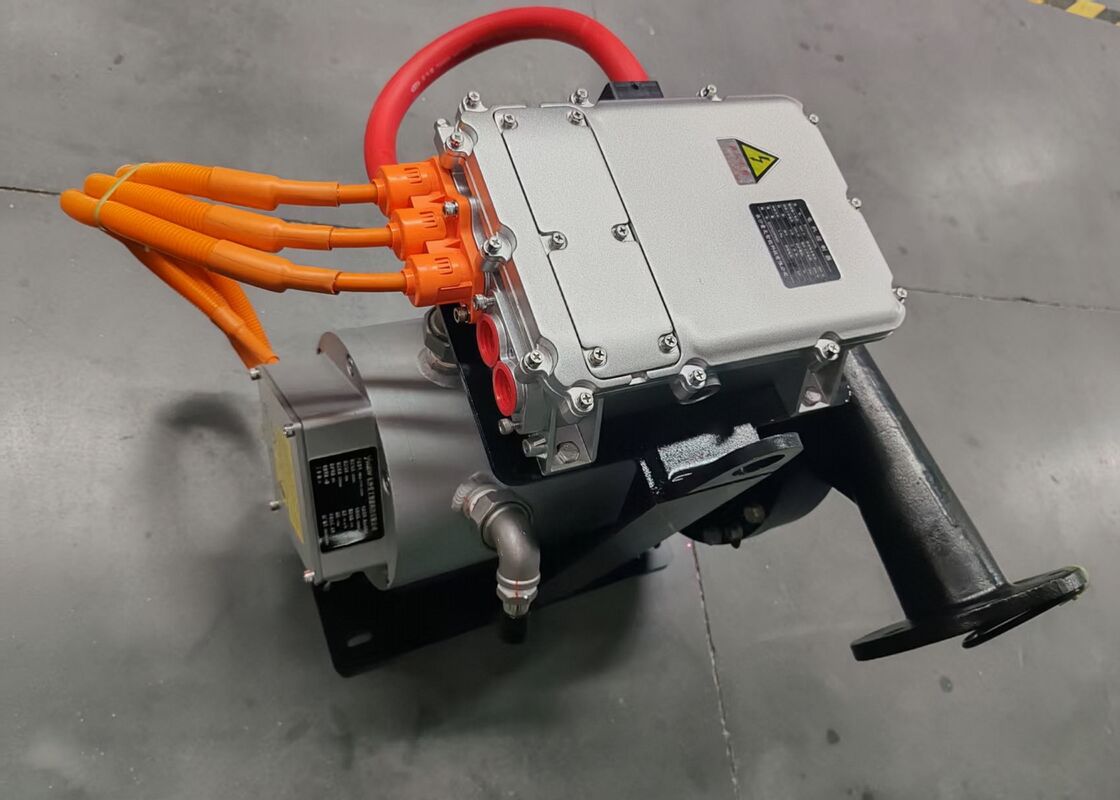

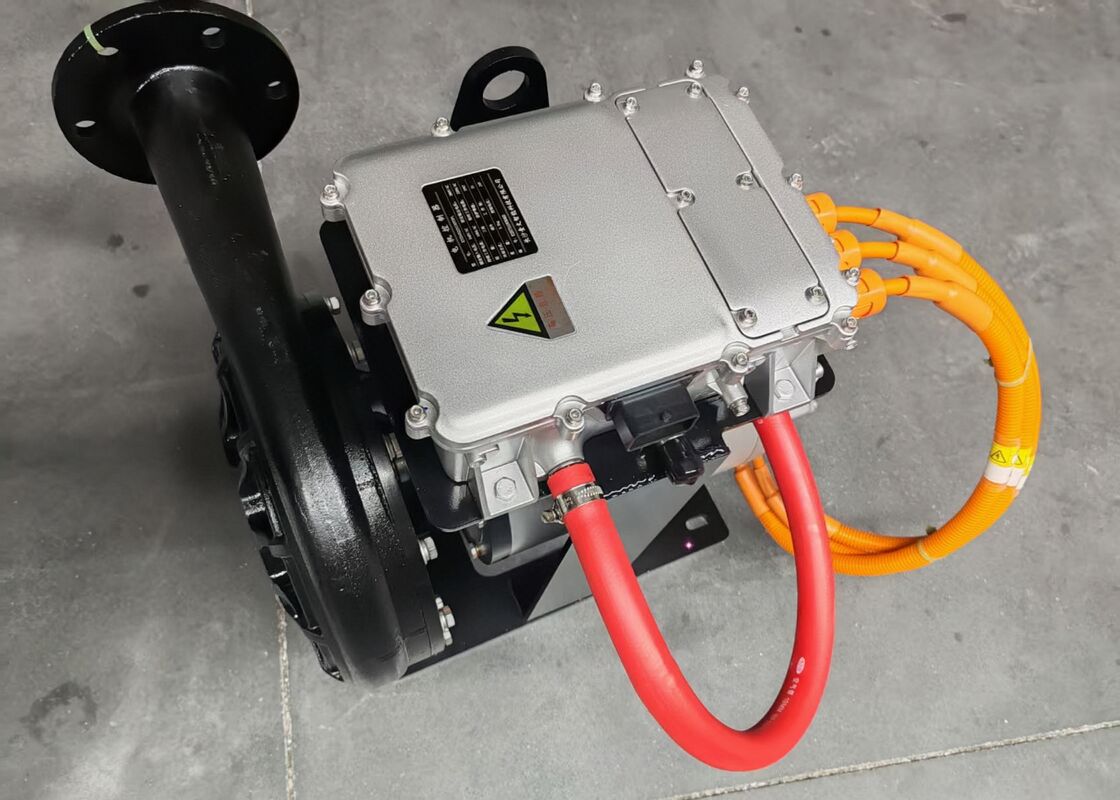

30kW Water-Cooled IP67 Integrated Water Pump Module with PMSM for Sweepers 1

Key Features

Integrated Design - Motor and pump in one compact housing
30kW PMSM Technology - High efficiency, precise speed control, low maintenance
Water Cooling - Superior thermal management for continuous duty applications
IP67 Protection - Dust-tight and waterproof for harsh outdoor environments
S1 Continuous Duty - Designed for extended operating hours
Class H Insulation - Withstands high temperatures for long-term durability
Modular Architecture - Easy integration into vehicle systems

This pump module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle or system requirements.
