Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles

Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles

50 m³/h Integrated Pump Module

Integrated Water Pump Module

IP67 Integrated Pump Module

Contact Us
Request A Quote
Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles
Product Details
Highlight:

50 m³/h Integrated Pump Module

,

Integrated Water Pump Module

,

IP67 Integrated Pump Module

Payment & Shipping Terms
RELATED PRODUCTS
Good price 30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications online

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications

Get Best Price
Good price 12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems online

12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems

Get Best Price
Good price 25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive online

25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive

Get Best Price
Good price 7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty online

7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty

Get Best Price
Contact Us
+8619973113995
jem@hncsjem.cn
Contact Now
Product Description

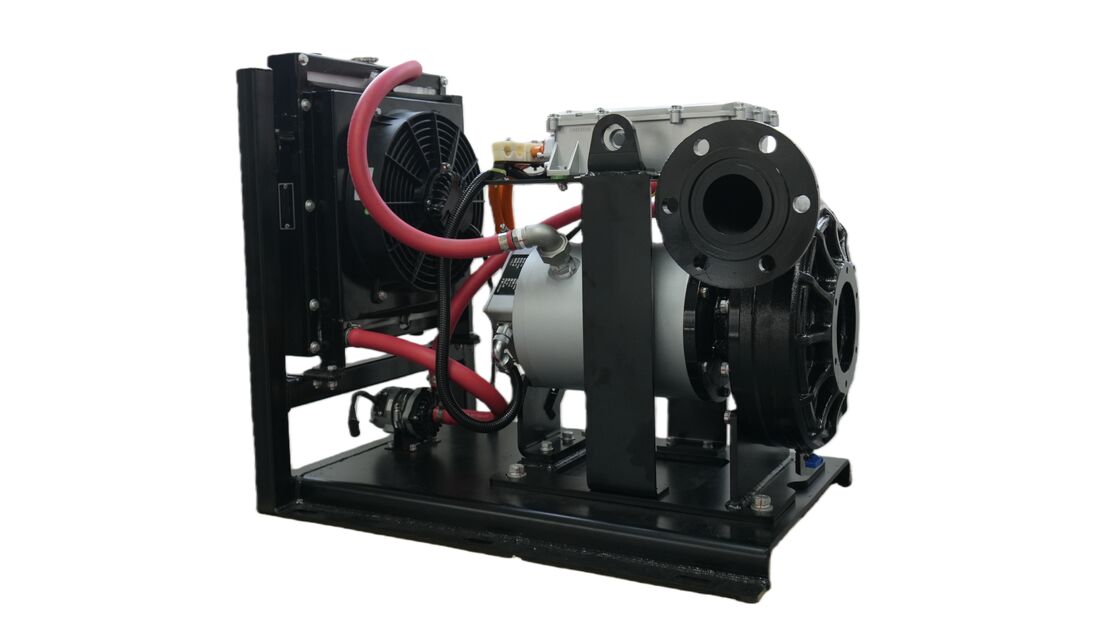

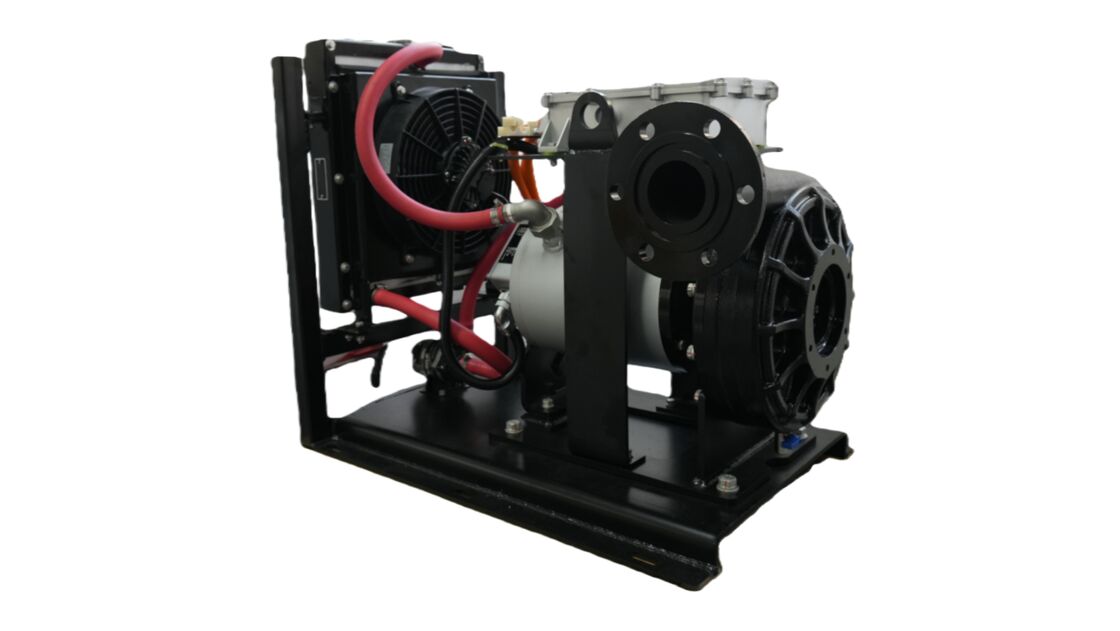

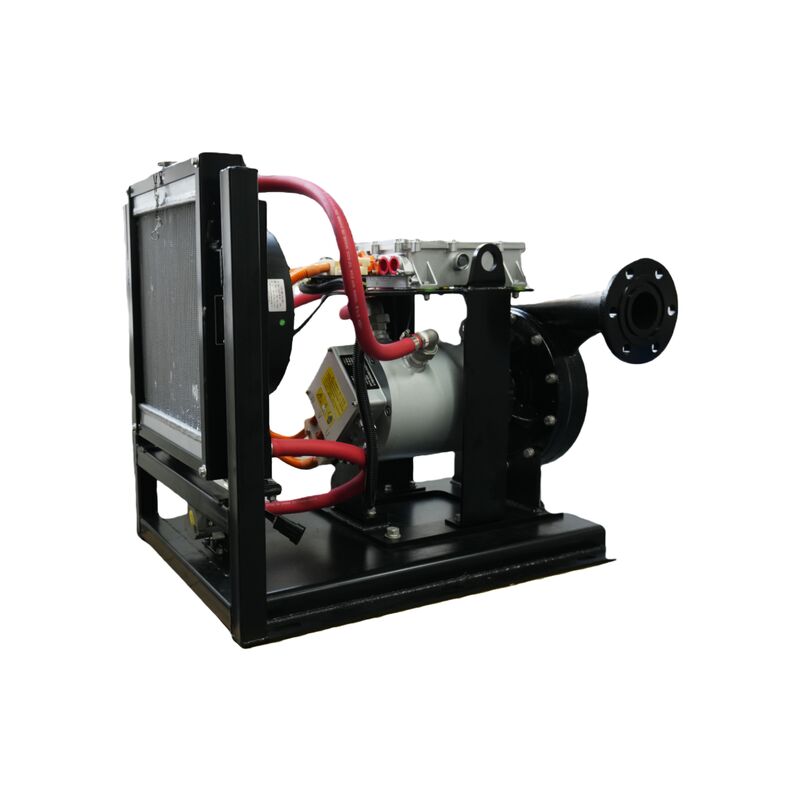

Integrated Water Pump Module – 30kW PMSM, 50m³/h, IP67
Product Overview
The Integrated Water Pump Module is a high-performance, space-saving solution designed for demanding sanitation vehicle applications. It combines a permanent magnet synchronous motor (PMSM) and a centrifugal pump into a single, modular unit—eliminating the need for external couplings and alignment, reducing installation complexity, and improving overall system reliability.
Technical Specifications
Pump Type Centrifugal Electric Pump
Flow Rate 50 m³/h
Head / Pressure 110 m
Motor Type Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration Star Connection
Cooling Method Water Cooling (via flow channel)
Rated Voltage 380 VAC
Battery Voltage 540 VDC
Rated Speed 3200 rpm
Motor Protection Class IP67
Rated Power 30 kW
Duty Cycle S1 (Continuous)
Rated Current 51 A
Insulation Class Class H
Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles 0 Integrated Water Pump Module with 30kW PMSM Motor, 50 m³/h Flow Rate, and IP67 Protection for Municipal Vehicles 1
Performance & Applications
Engineered for efficiency and durability, this module delivers a flow rate of 50 m³/h and a head of 110 meters, making it ideal for high-pressure washing, dust suppression, and water transfer tasks on sweepers, street flushers, and other municipal vehicles.
Key Features
  • Integrated design – motor and pump in one compact housing
  • PMSM technology – high efficiency, low maintenance
  • Water cooling via internal flow channels for optimal thermal management
  • IP67 protection – dust-tight and waterproof for harsh outdoor environments
  • S1 continuous duty – suitable for long operating hours
  • Class H insulation – withstands high temperatures
Whether you're upgrading existing equipment or developing new vehicle platforms, this module offers a plug-and-play solution backed by precision engineering and rigorous testing.
We support OEM/ODM customization to match your specific voltage, performance, and interface requirements.
