10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks

10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks

IP67 PMSM High-Pressure Pump Module

10kW PMSM High-Pressure Pump Module

Contact Us
Request A Quote
10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks 10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks 10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks
Product Details
Highlight:

IP67 PMSM High-Pressure Pump Module

,

10kW PMSM High-Pressure Pump Module

Payment & Shipping Terms
RELATED PRODUCTS
Good price 30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications online

30kW Water-Cooled High-Torque Motor Module with IP67 Protection for Hydraulic Pump Applications

Get Best Price
Good price 12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems online

12kW Modular Integrated Electric Pump with IP67 Protection and Natural Air Cooling for Sweeper Washdown Systems

Get Best Price
Good price 25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive online

25kW Water-Cooled PMSM Motor Module with IP67 Protection for Continuous Duty Electric Drive

Get Best Price
Good price 7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty online

7.5kW High-Pressure Pump Motor with Bypass Air Cooling and IP67 Protection for Continuous Duty

Get Best Price
Contact Us
+8619973113995
jem@hncsjem.cn
Contact Now
Product Description
High-Pressure Pump Module for Sweeper Trucks | 10kW PMSM, IP67 Rated
Product Specifications
Motor Model YW326-W10-1500A Motor Type 3-Phase Permanent Magnet Synchronous Motor (PMSM)
Winding Configuration Star Connection Cooling Method Natural Air Cooling
Rated Voltage 230VAC Battery Voltage 326VDC
Rated Speed 1500rpm Ingress Protection IP67
Rated Torque 63.6N.m Number of Poles 4
Rated Power 10KW Duty Cycle S1 (Continuous)
Rated Current 27A Insulation Class Class H

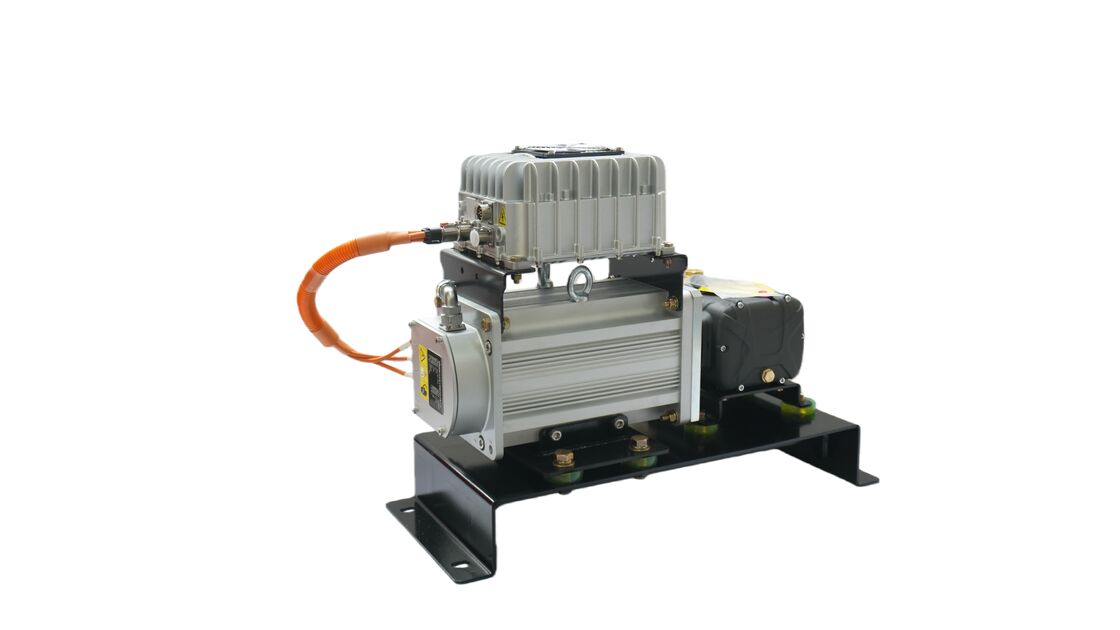

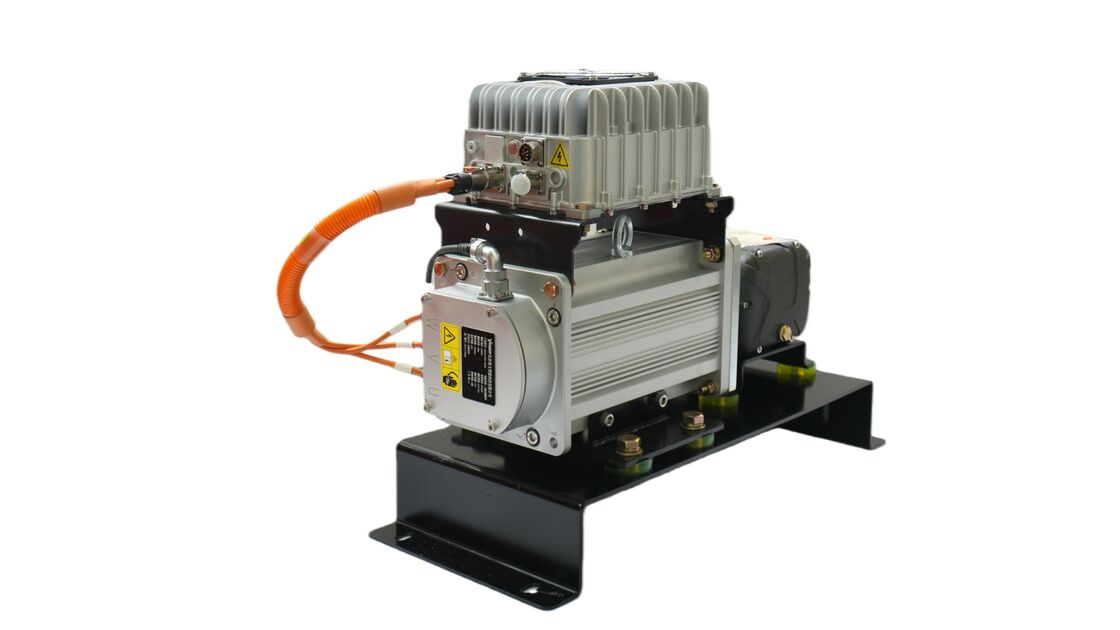

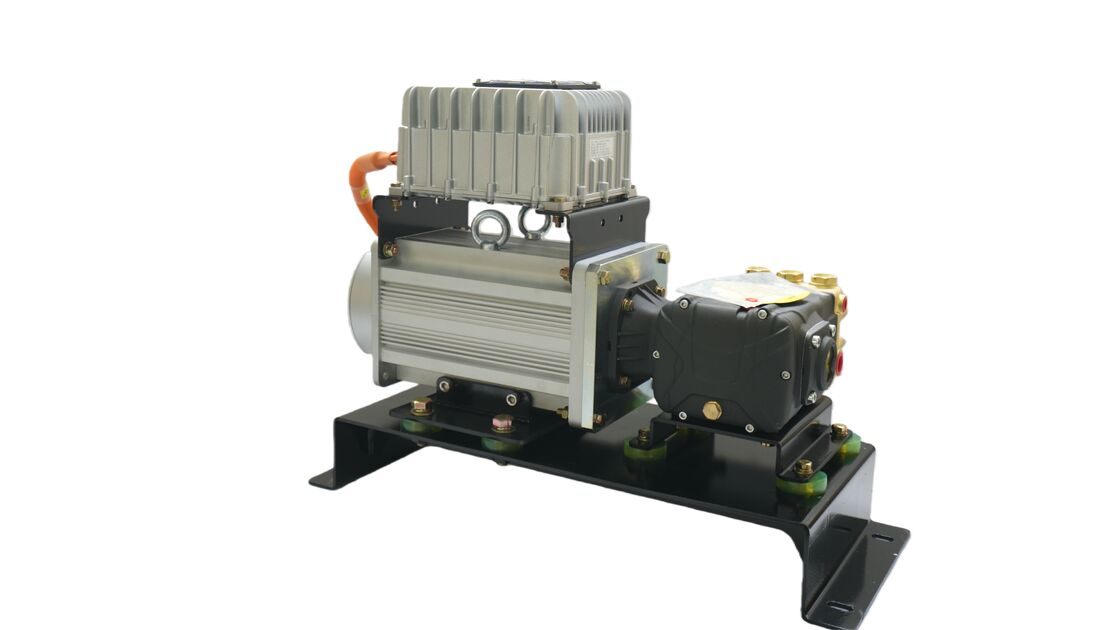

The High-Pressure Water Pump Module is a compact, high-efficiency pumping solution engineered for demanding sanitation and industrial applications. It integrates a 10kW permanent magnet synchronous motor (PMSM) with a precision-engineered pump end, delivering reliable performance in a space-saving package.
10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks 0 10kW PMSM High-Pressure Pump Module with IP67 Rating for Continuous Duty in Sweeper Trucks 1
With a rated flow and pressure capacity suitable for sweeper truck washdown systems, high-pressure cleaning, and dust suppression, this module is built to perform under continuous duty (S1) conditions. The IP67-rated motor ensures complete protection against dust and water ingress, making it ideal for harsh outdoor environments where exposure to moisture and debris is unavoidable.
Key Features
  • PMSM Technology – High efficiency, low maintenance, and precise speed control
  • IP67 Protection – Dust-tight and waterproof for all-weather operation
  • Natural Air Cooling – Simple, reliable thermal management without additional plumbing
  • S1 Continuous Duty – Designed for extended operating hours
  • Class H Insulation – Withstands high temperatures for long-term reliability
  • Compact Footprint – Easy integration into vehicle chassis or equipment skids
This module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle or system requirements.
