Other attributes:
| Place of Origin |

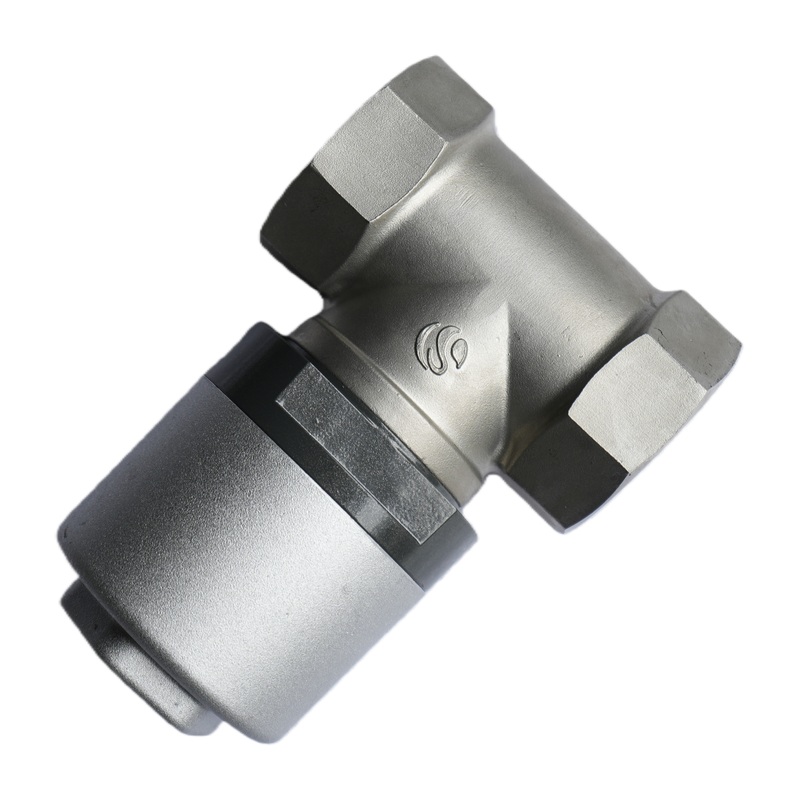

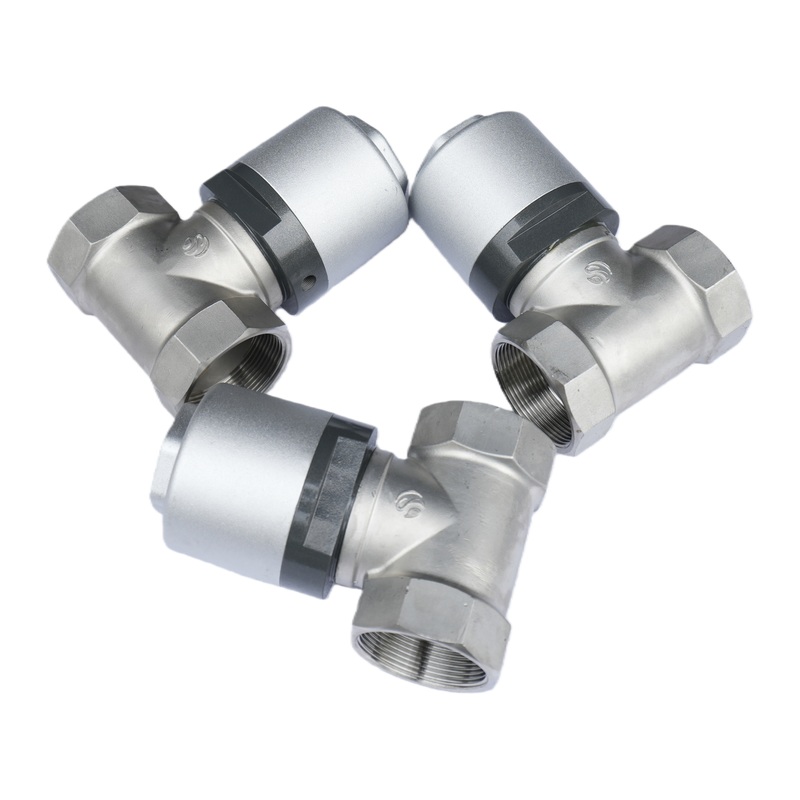

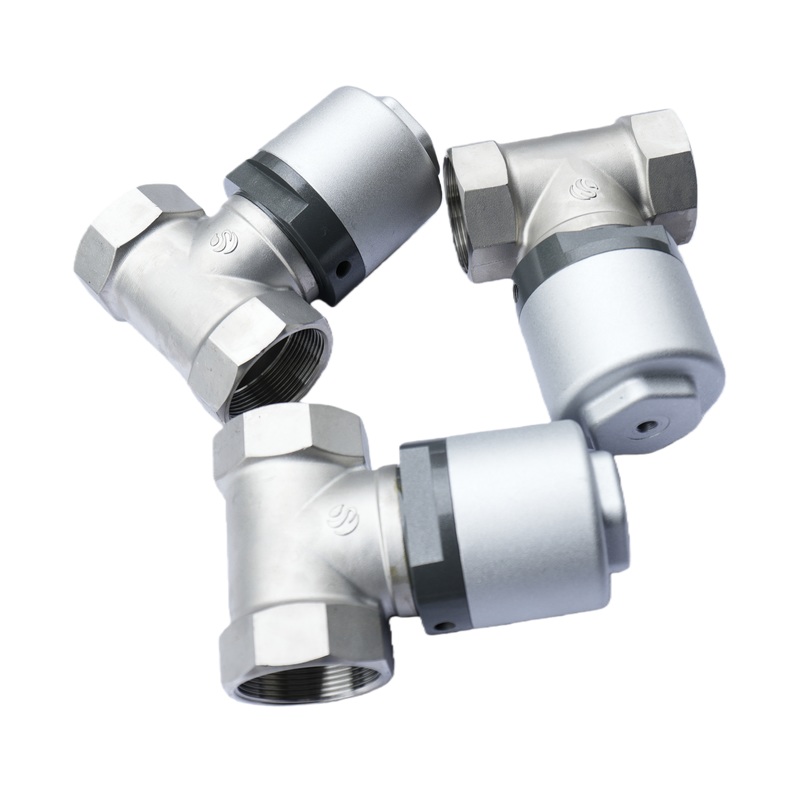

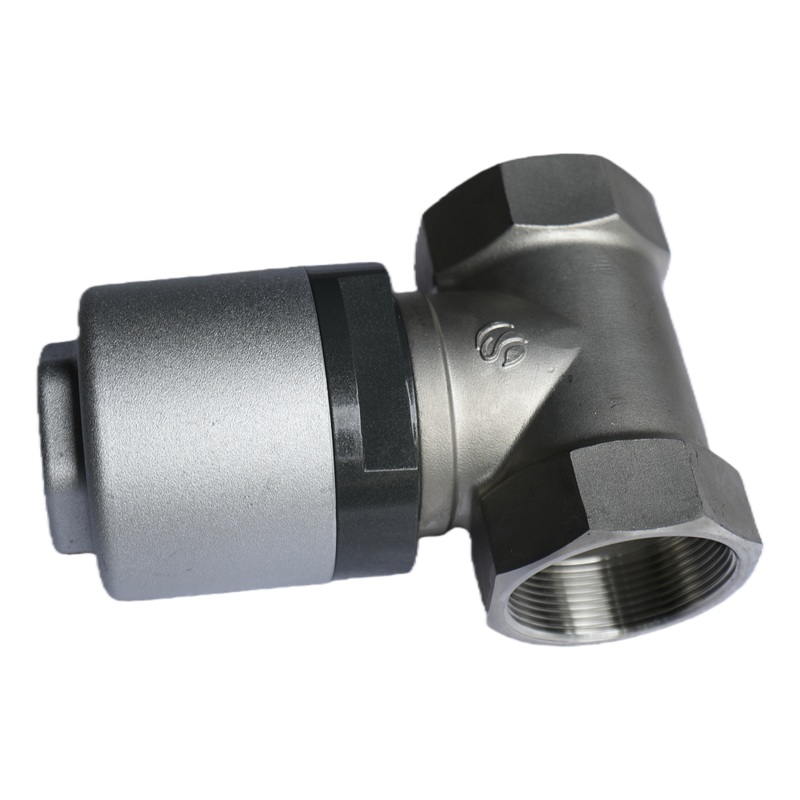

DN50 pneumatic cut-off valve |
| Customized support |
Can support customization |
| Brand Name |
Jieermei |
| Texture of material |
304 stainless steel |
| Size(M M) |
Length 113 * Width 82 * Height 171 |
| Normal operating water pressure (MPA) |
1.5 |
| Maximum water pressure resistance (MPA) |
3 |
| Inlet size |
G2 |
| Outlet Caliber |
G2 |
| technical requirement |
1. Normal operation at 0-80 degrees Celsius. 2 Ensure that the air valve opens at a pressure of no less than 1.5 MPa under a pressure of 0.75MPa. 3. The valve is suitable for use in neutra water environments and is not allowed to beused in acidic or alkaline environments |
| Main selling points |
1. The cylinder diameter is designed toincrease,resulting in higher opening waterpressure.2.Long service life, with over 100000 life tests. 3, The valve seal material is polyurethane, and the piston rod material is nylon. |
| Other matters |
Pay attention to antifreeze in freezing weather |
Packaging and delivery
| Selling Units: |
piece |
| Packaging and dimensions |
Bubble wrap and cardboard box |
| Single piece weight |
2KG |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Changsha jieermei Environmental Sanitation MachineryEquipment Co., Ltd., located in the star city of
Changshaadjacent to Sany
Heavy Industry, a giant in the field of intelligent engineeringmachinery, was established in 2013. We specialize in thedesign.
Development, production, after-sales service ofaccessories for environmental sanitation vehicles, as wellas installation guidance
And technical support for the upper part of thesevehicles. We are a leading company in China thatintegrates research and
Development, production, and modularized support inthe field of environmental sanitation vehicle nozzles,cleaning mechanisms, fan
Mechanisms, fluid mechanisms, etc.Ourproducts,such as deep cleaning nozzles, leaf shreddingnozzles, stamping-type nozzles,fans,
Cleaning mechanismspneumatic plug-in valves, and pneumatic cut-off valveshave been highly praisedand trusted by major OEMcustomers
1. who are we?
Changsha jieermei Sanitation Machinery Equipment Co., Ltd.
located in the star city of Changsha, adjacent to Sany.
Heavy Industry, a giant in the field of intelligent engineering machinery, was established in 2013. We specialize in the design,development, production, after-sales service of accessories for environmental sanitation vehicles, as well as installation;
Guidance and technical support for the upper part of these vehicles. We are a leading company in.
2.how can we guarantee quality?
Before large-scale production, manual quality inspection of pre production samples is always carried out; Always conduct fina lnspection before shipment;
3.what can you buy from us?
Cast iron structural components and waterway fluid components for cleaning sanitation vehicles (fan module assembly, suction cup module assembly, cleaning mechanism assembly, etc.)
